CNC Cylinder Head Porting Machines. 5-Axis High Speed CNC Porting.
Unmatched Precision, Superior
CNC Porting with consistent results. |
 |
|
|
|
|
|
|
|
|
|
|
|

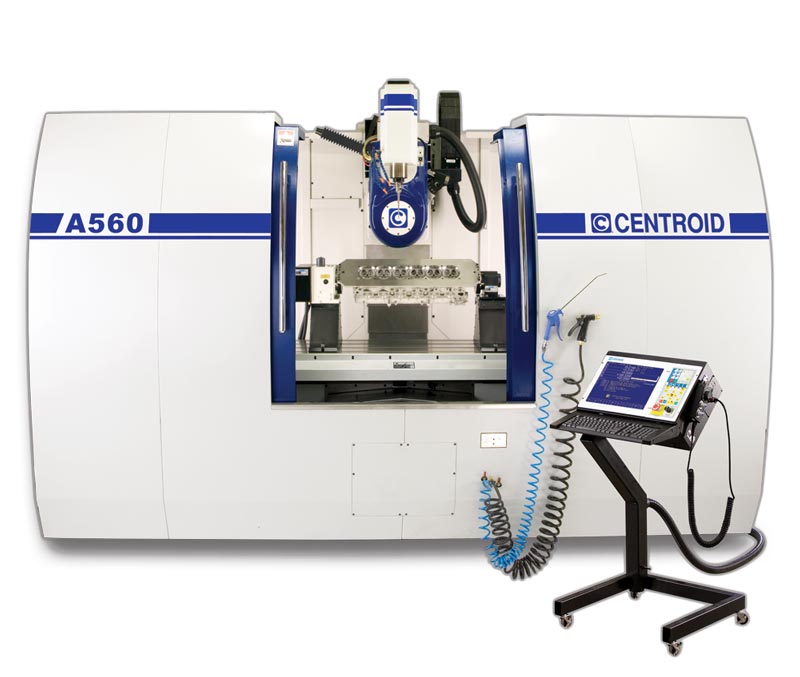

The A560 5-Axis articulating
head high speed CNC porting machine is a complete turn-key system,
including comprehensive one-on-one CNC porting training and support.
The A560 can port cylinder heads from a wide range of engine configurations:
V12,V10, V8 heads, V6, Inline 6, 5 and 4 cylinders, Import, Motorcycle,
Gas and Diesel engines. The CENTROID porting system overcomes limitations
of other cnc porting machines with its unique and patented technology
which provides better ports with seamless transitions. The A560
has the capacity to CNC port long cylinder heads such as inline
6 cylinder gas and diesel heads. CENTROID has simplified the porting
process, now you can digitize a head in the morning and be cutting
perfect copies in the afternoon. The combination of accuracy, repeatability,
training and support allows our customers to produce the most powerful
race winnings heads on the market. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Call (814)
353-9256 Ext. 101 for more information and pricing. CLICK
HERE FOR A560 VIDEO.. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

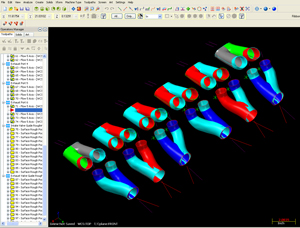

| A560
5 Axis CNC Cylinder Head Porting Machine Slide Show |
|
|
|
|
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
Patented Ballscrew
design.
CENTROID's ballscrew drive articulating head was designed specifically
for CNC Cylinder head porting. Made in the USA of rigid cast iron,
the articulating head provides 60 degrees of tilt in each direction
(120 degrees total) so the tool can cut even the most radical ports.
The design of the A560 minimize tool motion for fast smooth cutting
action. The unique ballscrew drive of the articulating head produces
the smoothest 5 axis action on the market. The design also overcomes
back lash and maintenance problems found with our competitors machines.
Where others have tried CENTROID has succeeded with this ingenious
robust design which produces fantastic ports. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

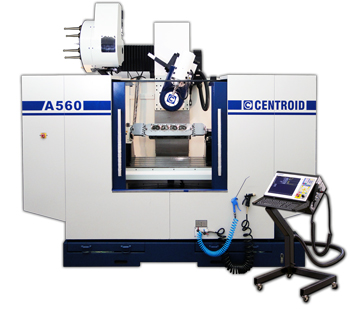

A560
5 Axis CNC Machining Center Brochure |
|
|
|
|
click
here to download hi-res PDF brochure |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
As with the CENTROID
A532, the A560 also has the capability to digitize in five axes.
So, there is no extra machine to buy or out-of-house digitizing
expense. The A560 comes equipped with on-machine 5 axis automatic
cylinder head port digitizing. Copy and cut a head in a day, start
to finish. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
 |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
All the software
needed to digitize and recreate Cylinder Head Intake and Exhaust
ports along with Combustion chambers is included with every CENTROID
CNC porting machine. There is no extra software or equipment to
buy. Our renowned one-on-one CNC porting training ensures you
will be CNC porting heads faster than any other system on the
market.
CLICK
HERE FOR A560 VIDEO.. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|

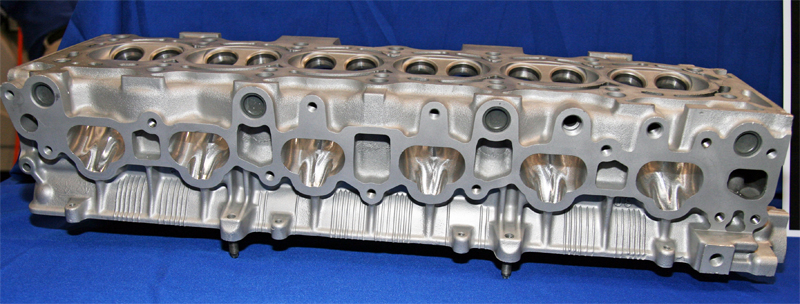

Perfect
port matching!
No other machine matches the accuracy of the the CENTROID porting
system. Our superior combustion chamber side to manifold side
matching guarantees that your design is being machined right where
its supposed to be.
Digitize and Cut on the same Machine.
Automatic Digitizing copies your original hand ported head, CENTROID's
DP4 Digitizer runs on the CNC machine so no need for an extra
digitizing machine. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Versatile
CNC Machine. Multi use machine: Port Cylinder heads
and intake manifolds, machine combustion chambers, engrave letters,
numbers and symbols, add o-ring grooves and more. V12,V10, V8
heads, V6,inline 6, 5 and 4 cylinders, Import and motorcycle engines
gas and diesel.
CLICK
HERE FOR A560 VIDEO.. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Patented 5 axis CNC Machine
- 10 days CNC Porting Training
- Mastercam X3 Software
- DP4 Digitizing Probe
- TT-1 Auto Tool Length Setter
- MPG Electronic Handwheel
- Custom Cylinder Head
fixture plate
- Carbide lollipop cutter
- Tool Holders.
Fully enclosed machine with sliding doors.
- Air blast hose and coolant wash down hose.
- Runs on 3 phase power.
|
- Capacity for long wide cylinder heads.
- High Speed CNC porting.
- CENTROID M400 5 Axis AC servo CNC control
- On-machine 5 axis CNC Digitizing.
- Auto Tool height set
- 17,000 rpm 7.5 Hp Spindle motor.
- Laser calibrated for high accuracy
- C3 double nut ballscrews
- Heavy Duty Frame with 4 box way on Y axis
- Hardened & Ground TurciteB Guideways
- FC30 Meehanite Casting Stress relieved
- Auto Tool Coolant system
- Telescopic steel way covers
- Auto central lubrication system
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Mastercam software.
The latest Multi Axis Mastercam software with a one year maintenance
agreement is included with every machine. We teach you how to use
Mastercam to create perfect CNC ports every time. This powerful
package opens your digitizing data and creates the program to port
the head, also allows you to tweak hand ported designs if necessary.
The CENTROID/Mastercam CNC porting system has significant advantages
both in cost and effectiveness while at the same time is the easiest
to learn and the best supported porting package on the market. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
State of the Art
CNC control.
Made in the USA the CENTROID M400 comes from a long history
of tough industrial CNC controls. The CENTROID CNC is known for
its user friendly operator interface combined with powerful features
which produce superior cuts and finishes with less work on your
part. Simple setup menus guide you thru the process. Advanced CNC
features like: Unlimited file size with accell/decell look ahead
provides smooth continuous tool motion. USB 2.0 ports and Ethernet
for easy file transfer. Stop and restart at any point. Program tool
path graphics. The CENTROID is a fast PC based CNC with updateable
software so you are always using the latest technology. Operator
friendly floor stand is convenient and comfortable to use. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Integrated Automatic
5-axis Digitizing!
Digitize and Cut using the same machine and the same control software.
No extra software to learn, no extra CMM machine necessary to
digitize a head. The same setup menus used to cut are used to
digitize. Real 5-axis Digitizing method is a CENTROID exclusive
time saving feature that produces better results than the competition.
No comparison to the 3 axis patch method the CENTROID 5-axis intake
and exhaust port digitizing is fast and accurate. No other system
can beat it!
Designed for Cylinder Head Digitizing.
CENTROID's DP-4 probe and software is specifically designed for
digitizing cylinder head intake, exhaust ports and combustion
chambers. This patented probe has special features just for cylinder
head copying. Simple for users to specify copy resolution for
the most accurate and best results.
Automatic Head Setup.
Not only is the probe used to copy your custom shapes, the same
probe automatically sets the Head zero locations on the fixture.
Quick, Accurate, Automatic part setup saves you time and makes
setup simple.
Ultra accurate, Stainless steel construction,advanced
patented circuitry, interchangeable styli, Made in USA. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
