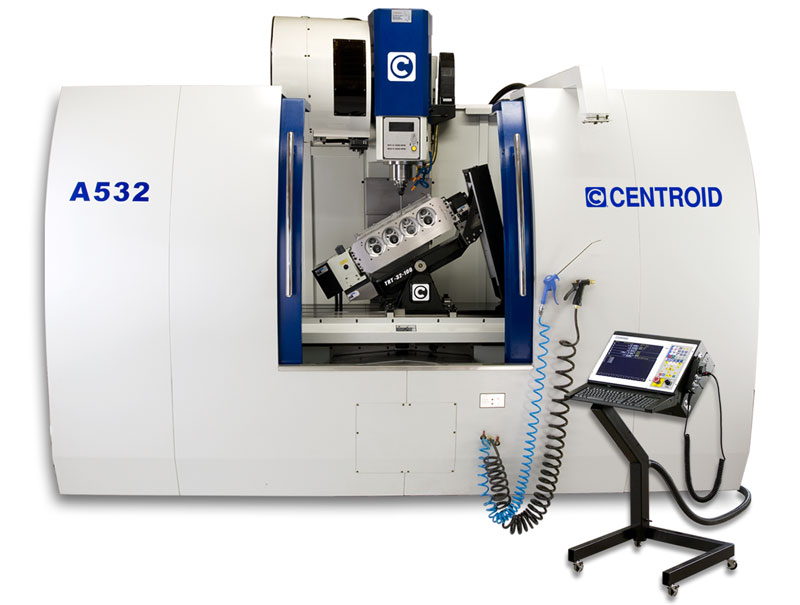

CENTROID CNC Cylinder Head Porting Machines. 5 Axis CNC Machining Centers.
Unmatched Precision, Superior CNC Porting with consistent results. |
|
|
|
|
|
|
|
|
| A complete turn-key system, the CENTROID CNC porting machine is supplied with comprehensive CNC porting training. The CENTROID system overcomes many limitations of other cnc porting machines with its unique and patented technology while providing our customers with expert training and support. This combination of accuracy, repeatability, training and support allows our customers to produce the most powerful race winnings heads on the market.
|
|
|
|
|
|
|
|
|
 |
- Patented 5 axis CNC Machine
- 10 days CNC Porting Training
- Mastercam X2 Software
- DP4 Digitizing Probe
- TT-1 Auto Tool Length Setter
- MPG Electronic Handwheel
- Custom Cylinder Head
fixture plate
- Carbide lollipop cutter
- 2 CAT 40 Tool Holders
- 24 Tool Automatic Tool Changer.
Fully enclosed machine with sliding doors.
- Air blast hose and coolant wash down hose.
- Runs on 3 phase power.
|
Download the brochure click here.
Call (814) 353-9266 Ext. 101 for more information and pricing.
Watch the video click here. |
|
 |
|
- TRT-32-100 Tilt Table (64 Degree)
- CENTROID M400 5 Axis AC servo
- 10 Hp Spindle motor w/Hi-Lo range
- Laser calibrated for high accuracy
- C3 double nut ballscrews
- 4 box way on Y axis
- Hardened & Ground
TurciteB Guideways
- FC30 Meehanite Casting
Stress relieved
- Auto Tool Coolant system
- Telescopic steel way covers
- Auto central lubrication system
|
|
|
|
|
|
|
|
|
|
Other common machining tasks that you can perform are: Engrave Letters, Numbers and Logos, Machine valve spring pockets, rocker arm mounting pads, drill or contour out oil drain back holes for better flow, machine push rod area for clearence, relieve pistons for valve clearence, port intake and exhaust manifolds, bore valve guide locations, create intake and exhaust plates and much more!
|
| |
|
|
|
|
|
|
|
 |
|
Perfect port matching!
No other machine matches the accuracy of the the CENTROID porting system. Our superior combustion chamber side to manifold side matching guarantees that your design is being machined right where its supposed to be. Digitize and Cut on the same Machine.
Automatic Digitizing copies your original hand ported head, CENTROID's DP4 Digitizer runs on the CNC machine so no need for an extra digitizing machine.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Versatile CNC Machine. Multi use machine: Port Cylinder heads and intake manifolds, machine combustion chambers, engrave letters, numbers and symbols, add o-ring grooves and more. V8 heads, V6 and 4 cylinders, Import and motorcycle engines.
|
|
| |
|
|
|
|
|
|
|
 |
|
Patented Ballscrew design.
CENTROID's tilting rotary table was designed specifically for CNC Cylinder head porting. Made in the USA of rigid cast iron the TRT 32-100 provides 32 degrees of tilt in each direction (64 degrees total) so the tool can cut even the most radical ports.
|
|
| |
|
|
|
|
|
|
|
 |
|
Mastercam X2 software.
The latest Multi Axis Mastercam software with a one year maintenance agreement is included with every machine. We teach you how to use Mastercam to create perfect CNC ports every time. This powerful package opens your digitizing data and creates the program to port the head, also allows you to tweak hand ported designs if necessary.
|
|
|
|
|
|
|
|
|
|
 |
|
State of the Art CNC control.
Made in the USA the CENTROID M400 comes from a long history of tough industrial CNC controls. The CENTROID CNC is known for its user friendly operator interface combined with powerful features which produce superior cuts and finishes with less work on your part. Simple setup menus guide you thru the process. Advanced CNC features like: Unlimited file size with accell/decell look ahead provides smooth continuous tool motion. USB 2.0 ports and Ethernet for easy file transfer. Stop and restart at any point. Program tool path graphics. The CENTROID is a fast PC based CNC with updateable software so you are always using the latest technology. Operator friendly floor stand is convenient and comfortable to use.
|
|
| |
|
|
|
|
|
 |
|
|
|
|
| |
Integrated Automatic Digitizing.
Digitize and Cut using the same machine and the same control software. No extra software to learn, no extra CMM machine necessary to digitize a head. The same setup menus used to cut are used to digitize.
Designed for Cylinder Head Digitizing.
CENTROID's DP-4 probe and software is specifically designed for digitizing cylinder head intake, exhaust ports and combustion chambers. This patented probe has special features just for cylinder head copying. Simple for user to specify copy resolution. Digitizes in 5 axis! for the most accurate and best results. Automatic Head Setup.
Not only is the probe used to copy your custom shapes, the same probe automatically sets the Head zero locations on the fixture. Quick, Accurate, Automatic setup saves you time and makes setup simple. Ultra accurate, Stainless steel construction, interchangeable styli, Made in USA.
|
|
| |
|
|
|
|
|
|
|
