CAD to CNC, DXF Import turns your CAD files into CNC part programs .

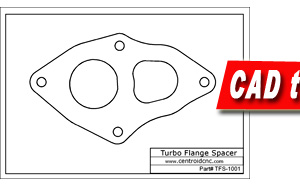

DXF CAD file converter, converts your CAD file to Tool Path right at the control Machine parts from CAD files without the use of a CAD CAM system!

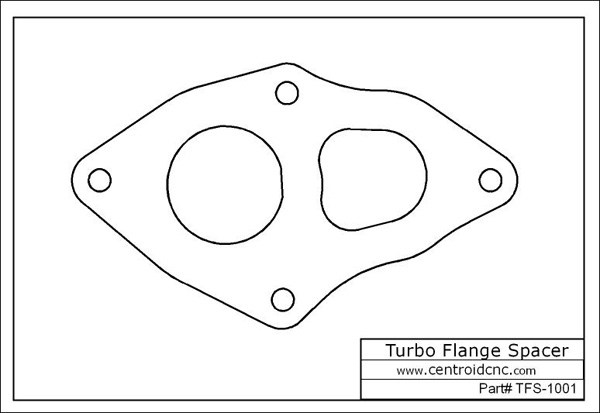

Machine parts from a CAD DXF file with CENTROID's DXF Import.                                  Part # 10814   $305
Note: click on any image for a larger view

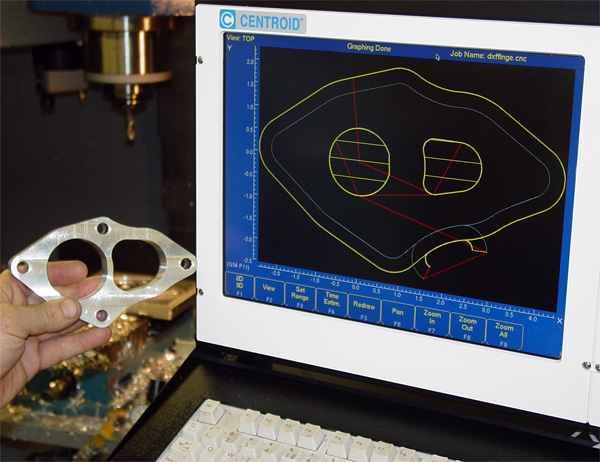

View tool path graphics of your part program before you machine.
  • Imports DXF files directly into conversational
  • Fast results, easy to learn.
  • Easily combine with conversational events!
  • Graphical interface, you choose what to machine.
  • Pocketing, Contouring, Drilling, Tapping
  • Engraving, Logos, Art
  • Import DXF with USB, USB Floppy or LAN
  • Use Mouse of Keys to select features
  • Use right on the control and/or on a PC
  • No CAD/CAM system necessary
  • Easier to learn than a CAD/CAM system
  • Less expensive than a CAD/CAM system
  • Intuitive for conversational users to learn.
  • Click on images for larger view

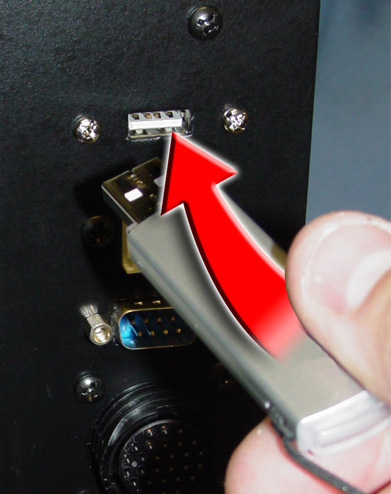

    Free USB 2.0 Port allows you to transfer DXF in and out of the control quickly and easily.

    Step #1

    Import DXF file into the control with the supplied USB port, the Floppy Disk or the ethernet LAN connection.

    In addition to creating part programs for a CAD file right at the control, CENTROID's Intercon Conversational with DXF import is also available for your Desktop PC. With the offline version you will be able to create part programs for your CENTROID CNC control in the comfort of your office.

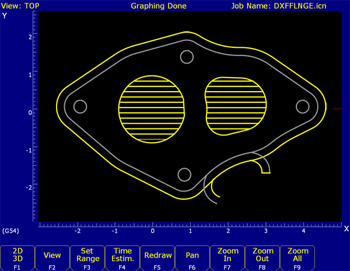

    Automatic tool path selection, contouring and pocketing with repeat to depth and finish passes.

    Step #2

    Using the mouse and the keyboard select the parts of the CAD file you want to machine, select the type of machining to be done, change the part zero point, add in cuter comp (if necessary) and the tool path is created automatically.

    View graphics of your work at any time, easily go back and make changes to any part of your work. Graphics show both porgrammed path the the cutter compensated path.

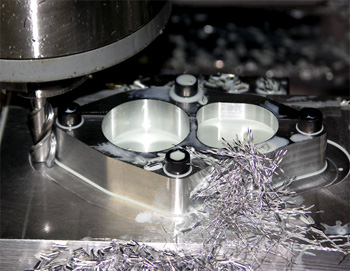

    Set up your vise and machine the part! click on image

    Step #3

    Set up your vise or fixture and machine the part.

    With a CENTROID CNC control you can stop the job at any point for any reason and resume right where you left off. The control automatically keeps track of where it was machining when stopped and will start right back up at the begining of that line or arc OR where ever you want.

    Here you see the final finish pass on our Turbo Flange adapter, we had Intercon automatically create several passes of the outside contour to reach the final depth, then the finish pass is made at full depth for the best possible surface finish.

    Note: click on any image for a larger view
